| Product | Purity | Quantity | Max. Working Pressure | Flow Rate |
|---|---|---|---|---|
| LOX | 99.99% | 768 cu.m. | 19 kg/cm2 | 60 m3/hr |
| LIN | 99.9991% | 621 cu.m. | 19 kg/cm2 | 60 m3/hr |
| LAR | 99.9993% | 753 cu.m. | 19 kg/cm2 | 60 m3/hr |
| Gross Volume : 972 Ltrs & Net Capacity : 924 Ltrs. | ||||
| Empty Weight : Approx. 950 kgs | ||||
| Tank Dimension (LxWxH) : 1600 x 1295 x 2185 mm | ||||
| MOC Inner Vessel : Stainless Steel | ||||
Mode of Delivery

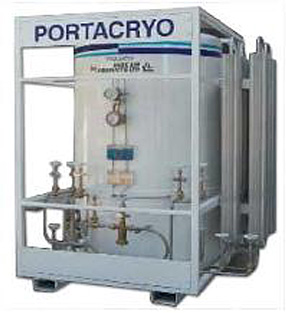

Portacryo
Liquid Cylinders
| Product | Purity | Quantity | Max. Working Pressure | Flow Rate |
|---|---|---|---|---|
| LOX | 99.99% | 151 cu.m. | 24 kg/cm2 | 10 m3/hr |
| LIN | 99.9991% | 119 cu.m. | 24 kg/cm2 | 10 m3/hr |
| LAR | 99.9993% | 145 cu.m. | 24 kg/cm2 | 10 m3/hr |
| Gross Volume : 209 Ltrs & Net Capacity : 196 Ltrs. | ||||
| Empty Weight : Approx. 320 kgs | ||||
| Liquid Cylinder Size : 20 Inch Diameter & 65.8 Inch Height | ||||
| MOC : Stainless Steel | ||||
Cylinders are vacuum insulated, stainless steel containers designed for the storage & transportation of liquid nitrogen, oxygen, argon, carbondioxide & nitrous oxide. The most advanced manufacturing methods have been incorporated into the design of these cylinders to guarantee longer holding times, reliability & safety of use.
-

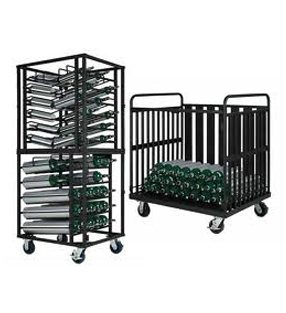

We also provide Racks/Trolley on request.
